Spresense、HDR カメラボード、W5500 Ether 拡張ボードを使ってシンプルな Web Camera を作ってみました。
今回のコードでは 192.168.1.240 にブラウザでアクセスすると Spresense の HDR カメラボードで撮影した JPG 画像データを表示します。

• Spresense Main Board
• Spresense HDR Camera Board
• W5500-Ether 拡張ボード

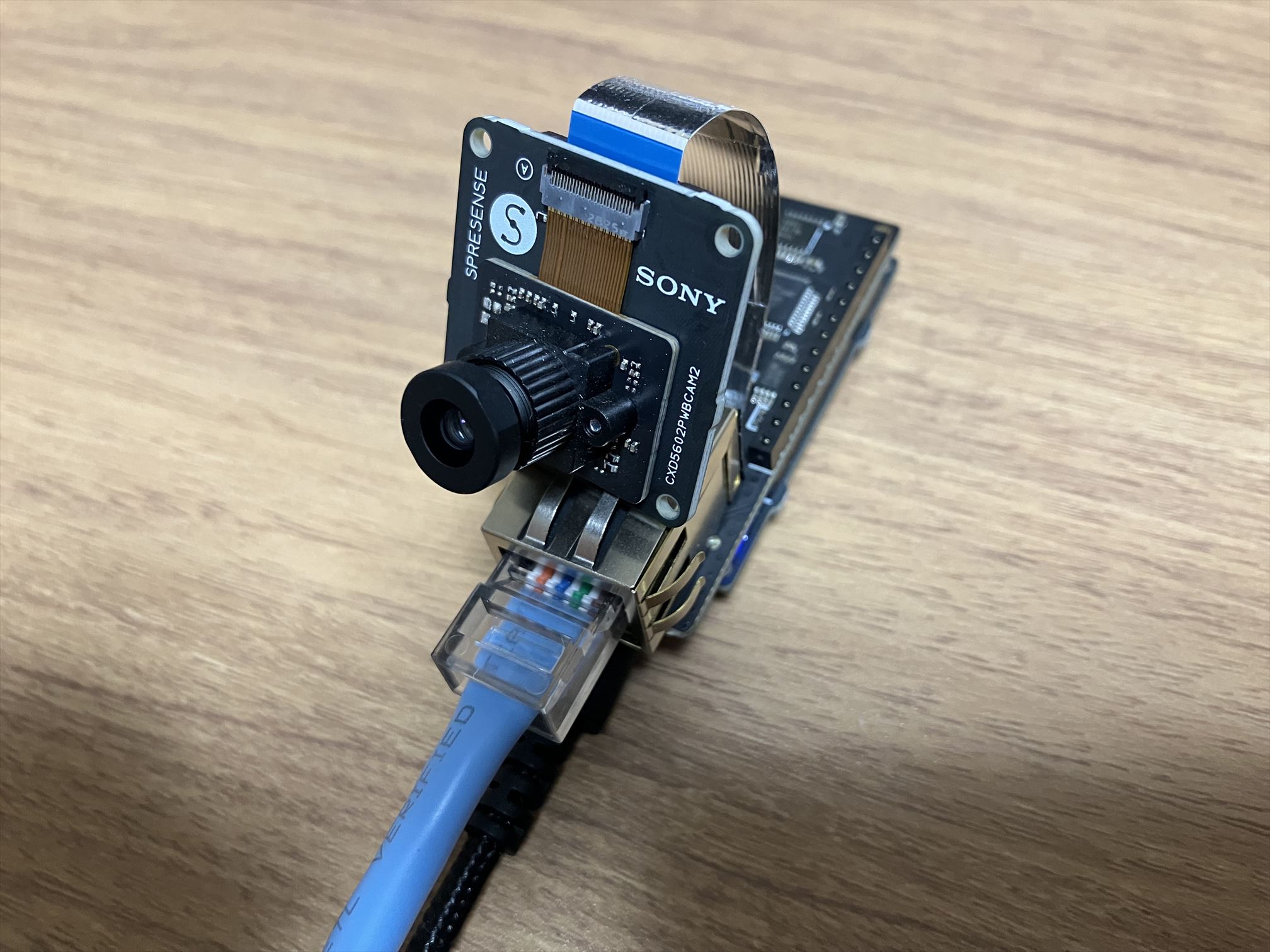

画像のように HDR カメラボード、W5500 Ether 拡張ボードを Spresense Main Board に接続してください。

src/Ethernet.h、src/M24C64.h についてはクレイン電子より提供されているサンプルコードそのままなので、割愛します。
(https://crane-elec.co.jp/products/vol-20/)

#include <SPI.h>
#include <Camera.h>

//Add-onボード用インクルード
#include "src/Ethernet.h"
#include "src/M24C64.h"

#define BAUDRATE  (115200)

//Add-onボード用のSPIはSPI5となるため、本ライブラリ使用時は以下の定義が必要(socket.cpp内にて使用)
//参考：https://developer.sony.com/develop/spresense/docs/arduino_developer_guide_ja.html#_spi_%E3%83%A9%E3%82%A4%E3%83%96%E3%83%A9%E3%83%AA
#define USE_SPRESENSE_SPI5

byte mac[] = {
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};
IPAddress ip(192, 168, 1, 240);

// Initialize the Ethernet server library
// with the IP address and port you want to use
// (port 80 is default for HTTP):
EthernetServer server(80);

//Add-onボード搭載EEPROMへのアクセス用
M24C64 eep;

void printErrorForCamera(enum CamErr err) {
  Serial.print("Error: ");
  switch (err) {
    case CAM_ERR_NO_DEVICE:
      Serial.println("No Device");
      break;
    case CAM_ERR_ILLEGAL_DEVERR:
      Serial.println("Illegal device error");
      break;
    case CAM_ERR_ALREADY_INITIALIZED:
      Serial.println("Already initialized");
      break;
    case CAM_ERR_NOT_INITIALIZED:
      Serial.println("Not initialized");
      break;
    case CAM_ERR_NOT_STILL_INITIALIZED:
      Serial.println("Still picture not initialized");
      break;
    case CAM_ERR_CANT_CREATE_THREAD:
      Serial.println("Failed to create thread");
      break;
    case CAM_ERR_INVALID_PARAM:
      Serial.println("Invalid parameter");
      break;
    case CAM_ERR_NO_MEMORY:
      Serial.println("No memory");
      break;
    case CAM_ERR_USR_INUSED:
      Serial.println("Buffer already in use");
      break;
    case CAM_ERR_NOT_PERMITTED:
      Serial.println("Operation not permitted");
      break;
    default:
      break;
  }
}

bool isI2C(uint8_t address) {
  Wire.beginTransmission(address);
  if (Wire.endTransmission() == 0) {
    return true;
  }
  return false;
}

void initializeW5500Ether() {
  digitalWrite(21, LOW);  //W5500_Eth RESET# = HIGH
  delay(500);
  digitalWrite(21, HIGH); //W5500_Eth RESET# = HIGH
  Serial.println("W5500 reset done.");
  Ethernet.init(19);      // use I2S_DIN pin for W5500 CS pin
}

void getMacAddressFromEEPROM() {
  // I2C device scan
  Serial.print(F("I2C Devices(0x) : "));
  Wire.begin();
  // I2C spec. have reserved address!! these scanning escape it address.
  for (uint8_t ad = 0x08; ad < 0x77; ad++) {
    if (isI2C(ad)) {
      Serial.print(ad, HEX);
      Serial.write(' ');
    }
  }
  Serial.write('\n');

  //EEPROM MAC ADDRESS read
  eep.init(0x57);
  Serial.println("MAC read from on board eeprom.");
  for (int i = 0; i < 6; i++) {
    mac[i] = eep.read(i);
    Serial.print(mac[i],HEX);
    Serial.print(":");
  }
  Serial.println("");
}

void setup() {
  CamErr err;

  Serial.begin(115200);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only
  }
  Serial.println("Ethernet WebServer Example");

  // Intialize Camera
  Serial.println("Prepare camera");
  err = theCamera.begin();
  if (err != CAM_ERR_SUCCESS) {
    printErrorForCamera(err);
  }

  // Start Streaming
  Serial.println("Start streaming");
  err = theCamera.startStreaming(true);
  if (err != CAM_ERR_SUCCESS) {
    printErrorForCamera(err);
  }

  // Auto white balance configuration
  Serial.println("Set Auto white balance parameter");
  err = theCamera.setAutoWhiteBalanceMode(CAM_WHITE_BALANCE_DAYLIGHT);
  if (err != CAM_ERR_SUCCESS) {
    printErrorForCamera(err);
  }

  // Set parameters about still picture.
  Serial.println("Set still picture format");
  err = theCamera.setStillPictureImageFormat(
     CAM_IMGSIZE_QQVGA_H,
     CAM_IMGSIZE_QQVGA_V,
     CAM_IMAGE_PIX_FMT_JPG);
  if (err != CAM_ERR_SUCCESS) {
    printErrorForCamera(err);
  }

  // W5500-Ether の初期化
  initializeW5500Ether();

  // W5500-Ether用のMACアドレス取得処理
  getMacAddressFromEEPROM();

  // start the Ethernet connection and the server:
  Ethernet.begin(mac, ip);

  // Check for Ethernet hardware present
  if (Ethernet.hardwareStatus() == EthernetNoHardware) {
    Serial.println("Ethernet shield was not found.  Sorry, can't run without hardware. :(");
    while (true) {
      delay(1); // do nothing, no point running without Ethernet hardware
    }
  }

  // Link Status が落ち着くまで待つ
  while (Ethernet.linkStatus() == LinkOFF) {
    delay(1000);  // 1000ms = 1s
    Serial.println("Ethernet cable is not connected.");
  }

  // start the server
  server.begin();
  Serial.print("server is at ");
  Serial.println(Ethernet.localIP());
}

void loop() {
  // listen for incoming clients
  EthernetClient client = server.available();
  if (client) {
    Serial.println("new client");
    // an http request ends with a blank line
    bool currentLineIsBlank = true;
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        Serial.write(c);
        // if you've gotten to the end of the line (received a newline
        // character) and the line is blank, the http request has ended,
        // so you can send a reply
        if (c == '\n' && currentLineIsBlank) {
          // send a standard http response header
          client.println("HTTP/1.1 200 OK");
          client.println("Content-Type: image/jpeg");
          client.println("Connection: close");  // the connection will be closed after completion of the response
          client.println();

          CamImage img = theCamera.takePicture();
          if (img.isAvailable()) {
            client.write(img.getImgBuff(), img.getImgSize());
          }
          break;
        }
        if (c == '\n') {
          // you're starting a new line
          currentLineIsBlank = true;
        } else if (c != '\r') {
          // you've gotten a character on the current line
          currentLineIsBlank = false;
        }
      }
    }
    // give the web browser time to receive the data
    delay(1);
    // close the connection:
    client.stop();
    Serial.println("client disconnected");
  }
}
