水槽監視システム Version2の製作

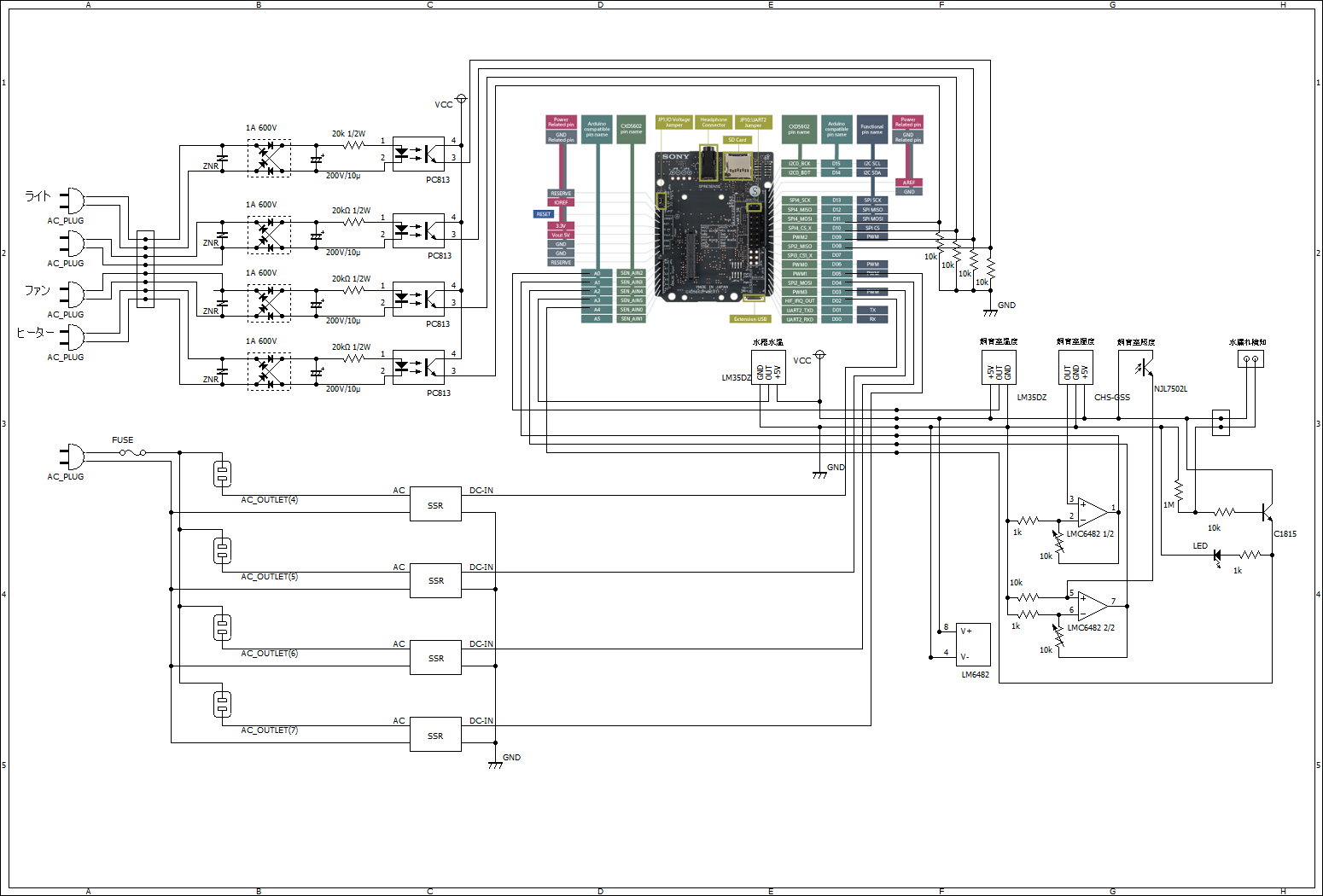

今回、SPRESENSE™ 活用コンテストをきっかけに以前製作した水槽監視システム（Aquarium Environment Controller）をリプレースしました。

SPRESENSEを使う事により1/5の大きさになりました。また、PICを使用しないのでプログラマブルに設定を変更できます。

AEC2
#include <SPI.h>
// SDcardReady
#include <SDHCI.h>
SDClass SD;
File myFile;
// ----------------------------------------------------------------------- //
//Add-onボード用インクルード
#include "src/Ethernet.h"
#include "src/M24C64.h"
// ----------------------------------------------------------------------- //

// ----------------------------------------------------------------------- //
//Add-onボード搭載EEPROMへのアクセス用
M24C64 eep;
// ----------------------------------------------------------------------- //

// ----------------------------------------------------------------------- //
//Add-onボード用のSPIはSPI5となるため、本ライブラリ使用時は以下の定義が必要(socket.cpp内にて使用)
//参考：https://developer.sony.com/develop/spresense/docs/arduino_developer_guide_ja.html#_spi_%E3%83%A9%E3%82%A4%E3%83%96%E3%83%A9%E3%83%AA
#define USE_SPRESENSE_SPI5
// ----------------------------------------------------------------------- //

// Enter a MAC address and IP address for your controller below.
// The IP address will be dependent on your local network:
byte mac[] = {
  0xDE, 0xAD, 0xBE, 0xEF, 0x98, 0x01
};
IPAddress ip(192, 168, 0, 135);

// Initialize the Ethernet server library
// with the IP address and port you want to use
// (port 80 is default for HTTP):
EthernetServer server(80);

bool isI2C(uint8_t address) {
  Wire.beginTransmission(address);
  if (Wire.endTransmission() == 0) {
    return true;
  }
  return false;
}

void setup() {
  // ----------------------------------------------------------------------- //
  // W5500-Ether用の初期化方法
  digitalWrite(21, LOW);  //W5500_Eth RESET# = HIGH
  delay(500);
  digitalWrite(21, HIGH);  //W5500_Eth RESET# = HIGH
  Serial.println("W5500 reset done.");
  Ethernet.init(19);  // use I2S_DIN pin for W5500 CS pin
  // ----------------------------------------------------------------------- //

  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  while (!Serial) {
    ;  // wait for serial port to connect. Needed for native USB port only
  }
  Serial.println("Ethernet WebServer Example");


  // ----------------------------------------------------------------------- //
  // W5500-Ether用のMACアドレス取得処理

  // I2C device scan
  Serial.print(F("I2C Devices(0x) : "));
  Wire.begin();
  //I2C spec. have reserved address!! these scanning escape it address.
  for (uint8_t ad = 0x08; ad < 0x77; ad++) {
    if (isI2C(ad)) {
      Serial.print(ad, HEX);
      Serial.write(' ');
    }
  }
  Serial.write('\n');

  //EEPROM MAC ADDRESS read
  eep.init(0x57);
  Serial.println("MAC read from on board eeprom.");
  for (int i = 0; i < 6; i++) {
    mac[i] = eep.read(i);
    Serial.print(mac[i], HEX);
    Serial.print(":");
  }
  Serial.println("");
  // ----------------------------------------------------------------------- //

  // start the Ethernet connection and the server:
  Ethernet.begin(mac, ip);

  // Check for Ethernet hardware present
  if (Ethernet.hardwareStatus() == EthernetNoHardware) {
    Serial.println("Ethernet shield was not found.  Sorry, can't run without hardware. :(");
    while (true) {
      delay(1);  // do nothing, no point running without Ethernet hardware
    }
  }
  if (Ethernet.linkStatus() == LinkOFF) {
    Serial.println("Ethernet cable is not connected.");
  }

  pinMode(8, INPUT_PULLDOWN);
  pinMode(9, INPUT_PULLDOWN);
  pinMode(10, INPUT_PULLDOWN);
  pinMode(11, INPUT_PULLDOWN);

  // start the server
  server.begin();
  Serial.print("server is at ");
  Serial.println(Ethernet.localIP());
}

int ledstatus[5] = { 0, 0, 0, 0, 0 };
void loop() {
  // listen for incoming clients
  EthernetClient client = server.available();
  String readString;
  if (client) {
    Serial.println("new client");
    // an http request ends with a blank line
    bool currentLineIsBlank = true;
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        if (readString.length() < 100) {
          readString += c;
        }

        if (c == '\n' && currentLineIsBlank) {
          for (int i = 0; i < 5; i++) {
            String s1 = "?led";
            String s2 = "=on";
            String s3 = "=off";
            if (readString.indexOf(s1 + i + s2) > 0) {
              digitalWrite(2 + i, HIGH);
              ledstatus[i] = 1;
            }
            if (readString.indexOf(s1 + i + s3) > 0) {
              digitalWrite(2 + i, LOW);
              ledstatus[i] = 0;
            }
          }


          // send a standard http response header
          client.println("HTTP/1.1 200 OK");
          client.println("Content-Type: text/html");
          client.println("Cache-Control: no-cache");
          client.println("Connection: close");
          client.println();
          client.println("<html>");

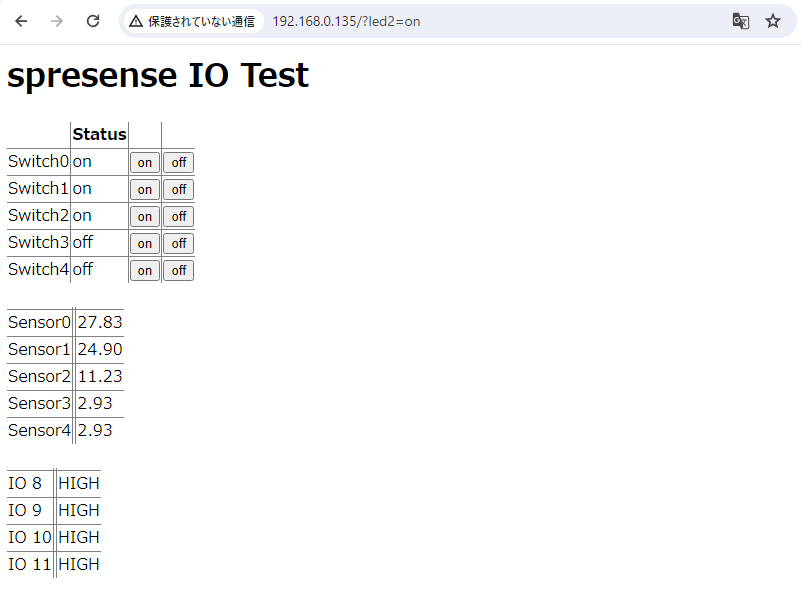

          client.println("<h1>spresense IO Test</h1>");
          // スイッチ操作
          client.println("<table rules=\"all\"><tr><th></th><th>Status</th><th></th><th></th></<tr>");
          for (int i = 0; i < 5; i++) {
            client.println((String) "<tr><td>Switch" + i + (String) "</td><td>");
            if (ledstatus[i] == 1) {
              client.println("on");
            } else {
              client.println("off");
            }
            client.println("</td>");
            client.println((String) "<td><button onclick=\"window.location.href='?led" + i + (String) "=on'\">on</button></td>");
            client.println((String) "<td><button onclick=\"window.location.href='?led" + i + (String) "=off'\">off</button></td>");
            client.println("</tr>");
          }
          client.println("</table>");
          client.println("<br/>");

          // 温度表示
          client.println("<table rules=\"all\"><tr><th></th><th></th></<tr>");
          for (int i = 0; i < 5; i++) {
            client.println((String) "<tr><td>Sensor" + i + (String) "</td><td>");
            int sensorReading = analogRead(A0);
            float tmp = ((float(sensorReading) * 5.0) / 1024.0) * 100.0;
            client.println("<td>");
            client.println(tmp);
            client.println("</td>");
            client.println("</tr>");
          }
          client.println("</table>");

          client.println("<br/>");
          // Dpin 8-11
          client.println("<table rules=\"all\"><tr><th></th><th></th></<tr>");
          for (int i = 0; i < 4; i++) {
            client.println((String) "<tr><td>IO " + (8 + i) + (String) "</td><td>");
            int digitalData = digitalRead(8 + i);
            client.println("<td>");
            if (digitalData == HIGH) {
              client.println("HIGH");
            } else {
              client.println("LOW");
            }
            client.println("</td>");
            client.println("</tr>");
          }
          client.println("</table>");


          client.println("<br/>");

          client.println("</html>");

          break;
        }
        if (c == '\n') {
          // you're starting a new line
          currentLineIsBlank = true;
        } else if (c != '\r') {
          // you've gotten a character on the current line
          currentLineIsBlank = false;
        }
      }
    }
    // give the web browser time to receive the data
    delay(1000);
    client.flush();
    // close the connection:
    client.stop();
    Serial.println("client disconnected");
  }
}
