M5StickCとBlynkで作るお手軽リモートカー

概要
M5stickCとBlynkで作るM5リモートカー

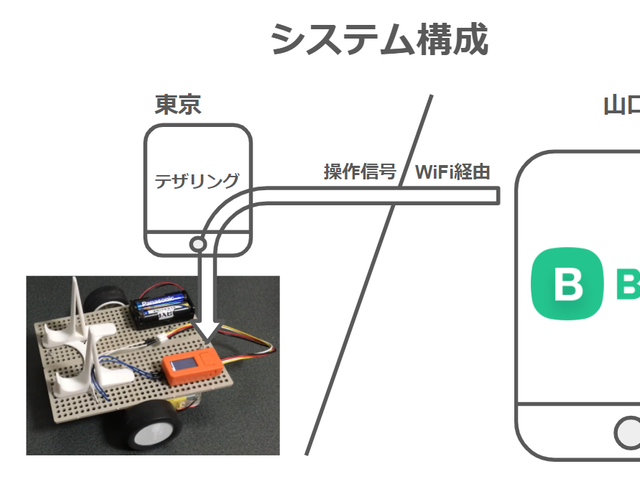

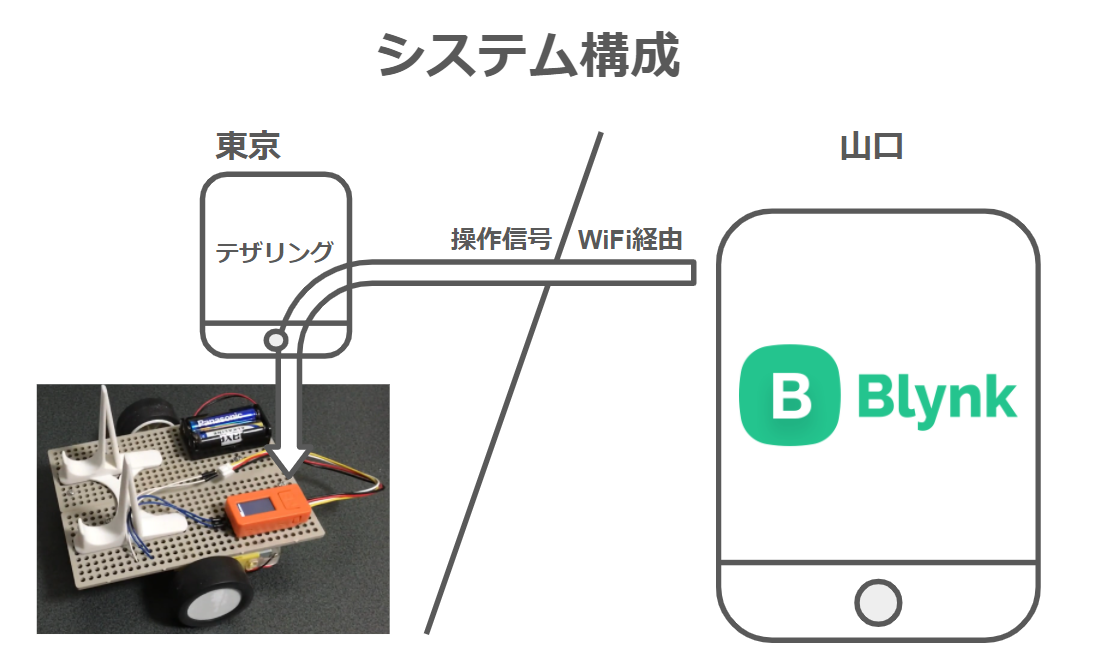

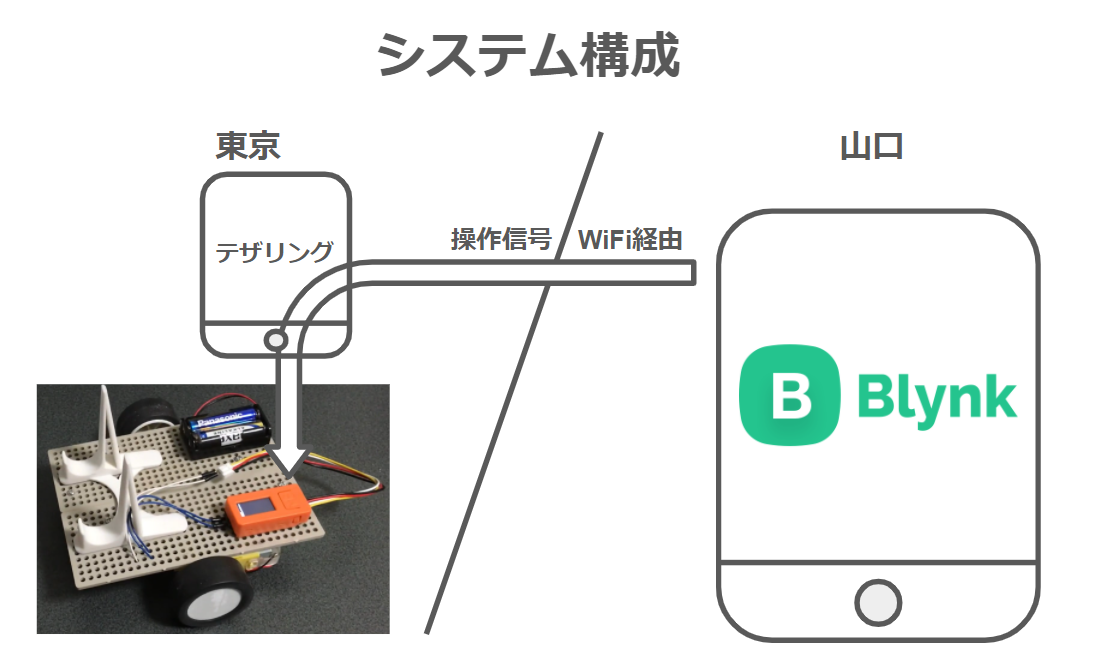

• 遠隔地から操縦できます
• 前面にスマホを置いてビデオ通話できます

動画

製作手順

1. M5StickCのArduino開発環境整備
2. Blynkセットアップ
3. 下記プログラム書き込み
4. ハードウェア組立
5. 動作確認・完成

プログラム

M5RemoteMotor
/*************************************************************
  Download latest Blynk library here:
    https://github.com/blynkkk/blynk-library/releases/latest

  Blynk is a platform with iOS and Android apps to control
  Arduino, Raspberry Pi and the likes over the Internet.
  You can easily build graphic interfaces for all your
  projects by simply dragging and dropping widgets.

    Downloads, docs, tutorials: http://www.blynk.cc
    Sketch generator:           http://examples.blynk.cc
    Blynk community:            http://community.blynk.cc
    Follow us:                  http://www.fb.com/blynkapp
                                http://twitter.com/blynk_app

  Blynk library is licensed under MIT license
  This example code is in public domain.

 *************************************************************
  This example runs directly on ESP32 chip.

  Note: This requires ESP32 support package:
    https://github.com/espressif/arduino-esp32

  Please be sure to select the right ESP32 module
  in the Tools -> Board menu!

  Change WiFi ssid, pass, and Blynk auth token to run :)
  Feel free to apply it to any other example. It's simple!
 *************************************************************/

/* Comment this out to disable prints and save space */
#define BLYNK_PRINT Serial

/* Fill-in your Template ID (only if using Blynk.Cloud) */
#define BLYNK_TEMPLATE_ID "YourTemplateID"

#include <WiFi.h>
#include <WiFiClient.h>
#include <BlynkSimpleEsp32.h>
#include <M5StickC.h>  //追加部分

// You should get Auth Token in the Blynk App.
// Go to the Project Settings (nut icon).
char auth[] = "YourAuthToken";

// Your WiFi credentials.
// Set password to "" for open networks.
char ssid[] = "YourNetworkName";
char pass[] = "YourPassword";

void setup()
{
  M5.begin();    //追加部分
  M5.Lcd.println("Blynk");   //追加部分
  M5.Lcd.print("M5RemoteMotor");   //追加部分

  pinMode(GPIO_NUM_26, OUTPUT);    //追加部分
  pinMode(GPIO_NUM_0 , OUTPUT);    //追加部分
  pinMode(GPIO_NUM_32, OUTPUT);    //追加部分
  pinMode(GPIO_NUM_33, OUTPUT);    //追加部分
  digitalWrite(GPIO_NUM_26, HIGH);    //追加部分
  digitalWrite(GPIO_NUM_0 , HIGH);    //追加部分
  digitalWrite(GPIO_NUM_32, HIGH);    //追加部分
  digitalWrite(GPIO_NUM_33, HIGH);    //追加部分

  // Debug console
  Serial.begin(9600);

  Blynk.begin(auth, ssid, pass);
}

void loop()
{
  Blynk.run();
}

//追加部分
BLYNK_WRITE(V0) {
  int16_t LED = param[0].asInt();

  if(LED == 0){
      l_brake();
  }
  if(LED == 1){
      l_front();
  }
}

BLYNK_WRITE(V1) {
  int16_t LED = param[0].asInt();

  if(LED == 0){
      r_brake();
  }
  if(LED == 1){
      r_front();
  }
}

BLYNK_WRITE(V2) {
  int16_t LED = param[0].asInt();

  if(LED == 0){
      l_brake();
  }
  if(LED == 1){
      l_back();
  }
}

BLYNK_WRITE(V3) {
  int16_t LED = param[0].asInt();

  if(LED == 0){
      r_brake();
  }
  if(LED == 1){
      r_back();
  }
}

void l_front(){
  digitalWrite(GPIO_NUM_26, HIGH);
  digitalWrite(GPIO_NUM_0 , LOW);
}

void r_front(){
  digitalWrite(GPIO_NUM_32, HIGH);
  digitalWrite(GPIO_NUM_33, LOW);
}

void l_back(){
  digitalWrite(GPIO_NUM_26, LOW);
  digitalWrite(GPIO_NUM_0 , HIGH);
}

void r_back(){
  digitalWrite(GPIO_NUM_32, LOW);
  digitalWrite(GPIO_NUM_33, HIGH);
}

void l_brake(){
  digitalWrite(GPIO_NUM_26, HIGH);
  digitalWrite(GPIO_NUM_0 , HIGH);
}

void r_brake(){
  digitalWrite(GPIO_NUM_32, HIGH);
  digitalWrite(GPIO_NUM_33, HIGH);
}

参考文献

• M5StickCのIOについて調べてみた
  GPIO36はdigitalWrite() が使えないみたい

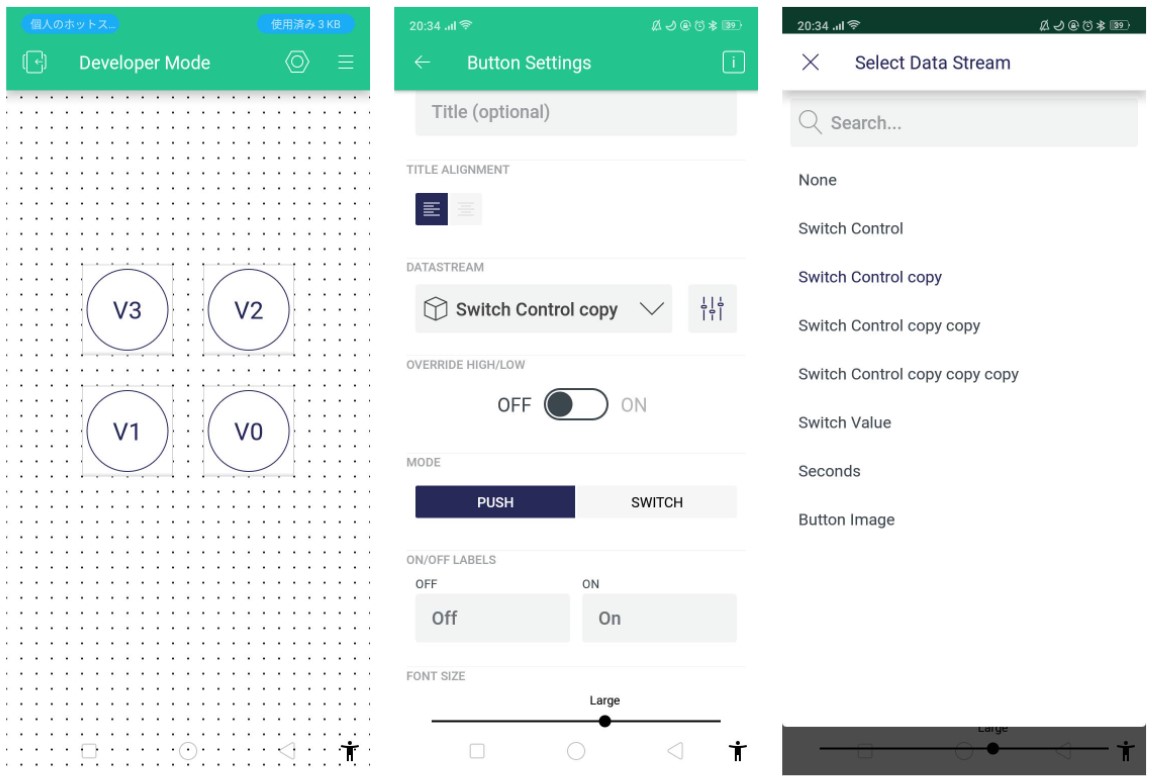

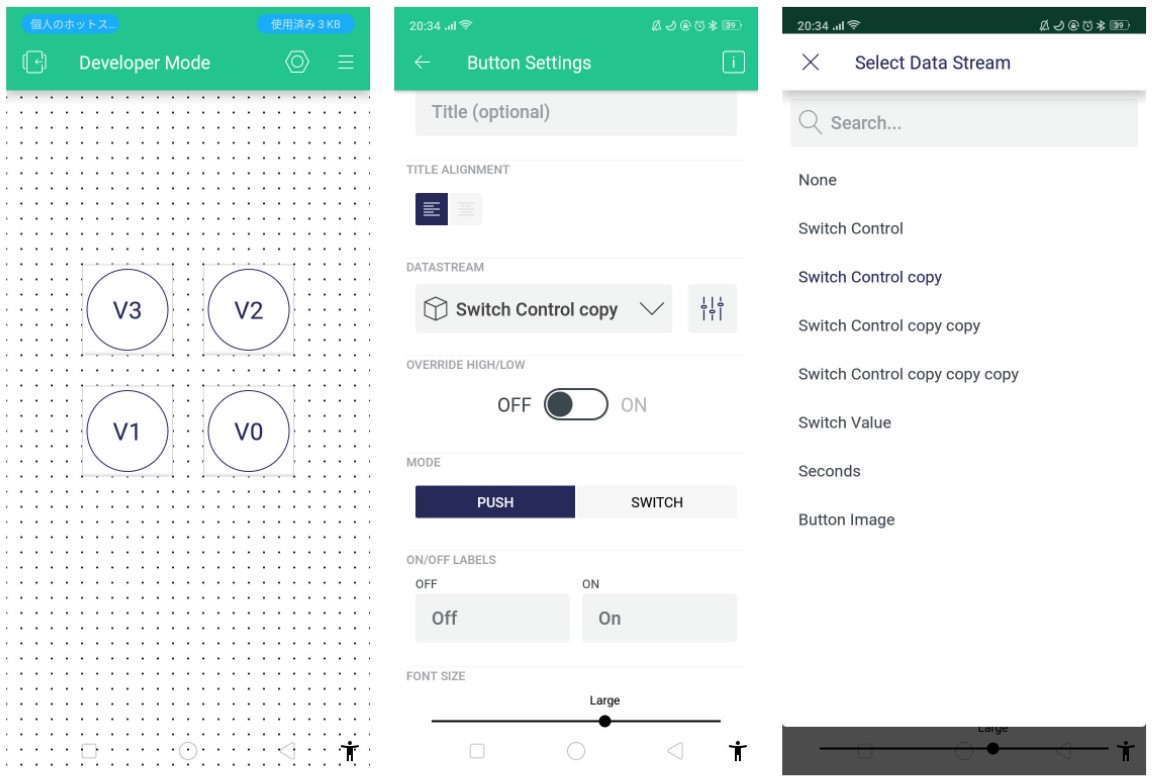

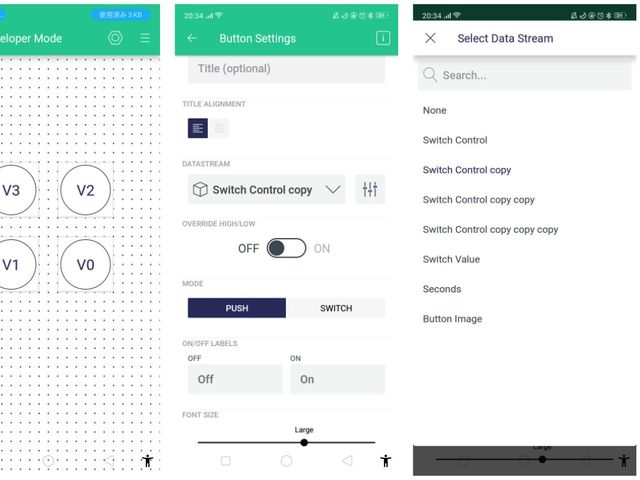

• How to change Virtual Pin Index in Blynk IoT App
  新しい方のBlynkのスマホアプリではバーチャルPin番号を変えられず、そこだけはWeb上のダッシュボードから追加する必要がある

参考画像
