デモ動画

部品

使用するハードウェアを次に示します。

使用するソフトウェアを次に示します。

設計図

「動き検知器」は、加速度計から定期的にセンサー情報を入力して、その情報を液晶モジュールに表示し、BLE（Bluetooth Low Energy）転送により遠隔地のパソコン等のブラウザに表示し、またその動きの変化をカラーテープLEDを用いて可視化します。

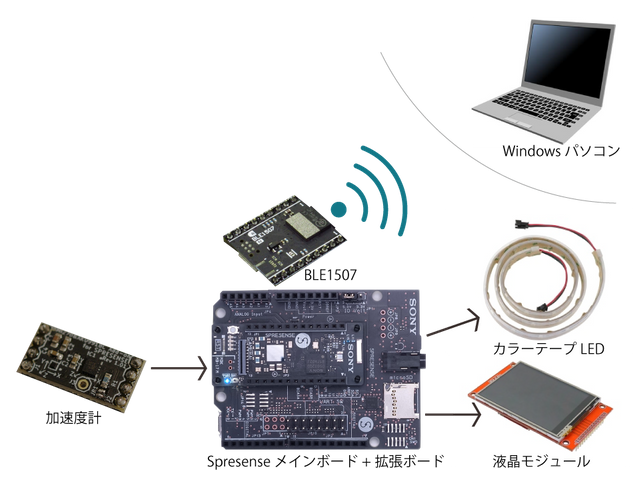

「動き検知器」は、次に示すハードウェアにより構成されます。

「動き検知器」は、次のようにして開発しました。

• Spresenseメインボード上で動作するプログラムはArduino IDEを使って開発します。

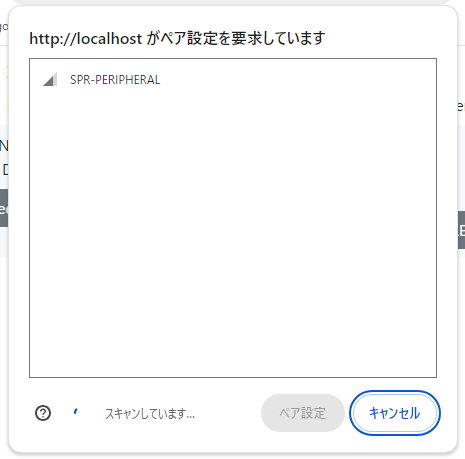

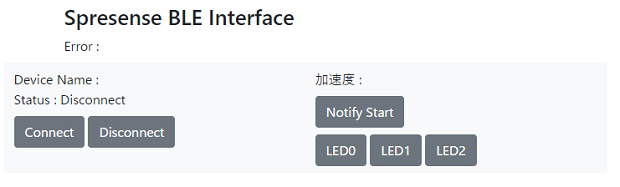

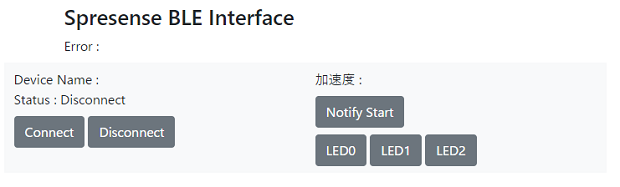

• BLE転送により転送されるデータをブラウザに表示するために、Windowsパソコン上で動作するWebアプリを開発します。
• 定期的に加速度計からのデータを液晶モジュールに表示し、BLE転送によりWindowsパソコンに転送し、カラーテープLEDで可視化します。

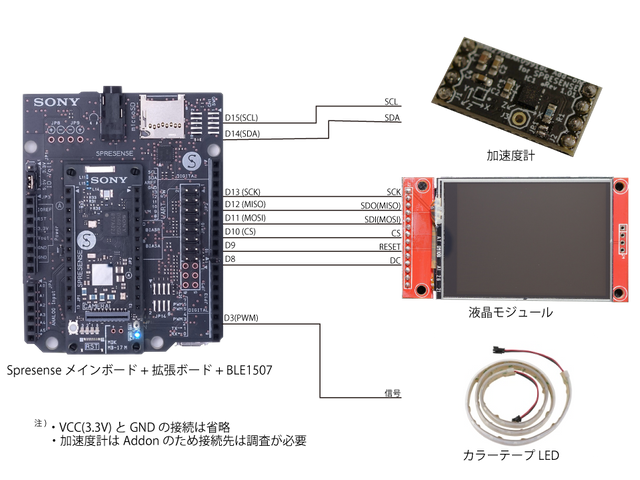

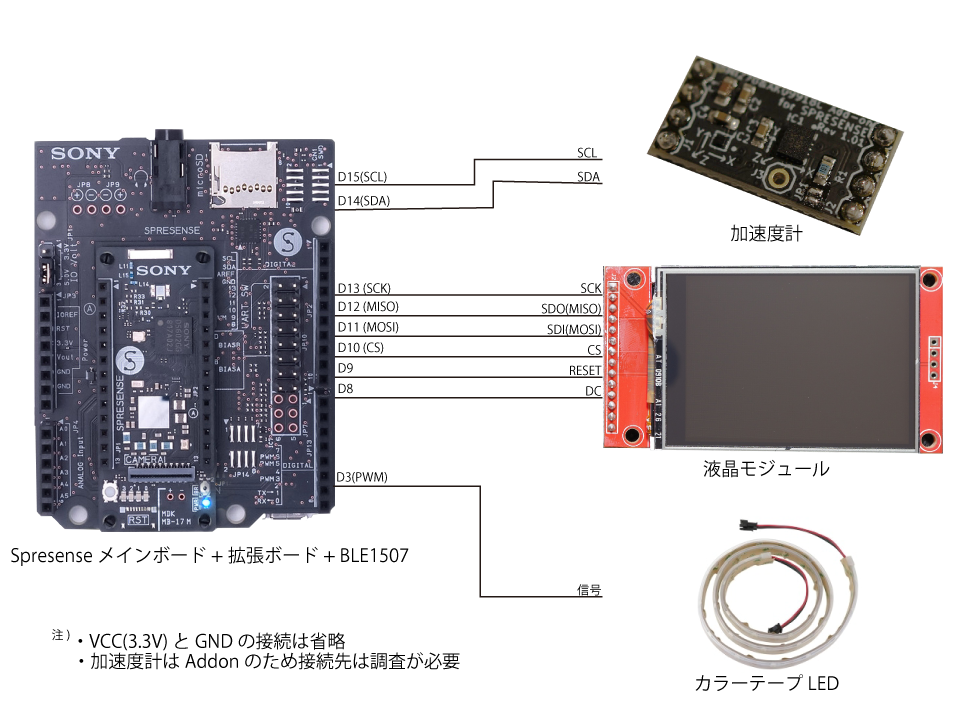

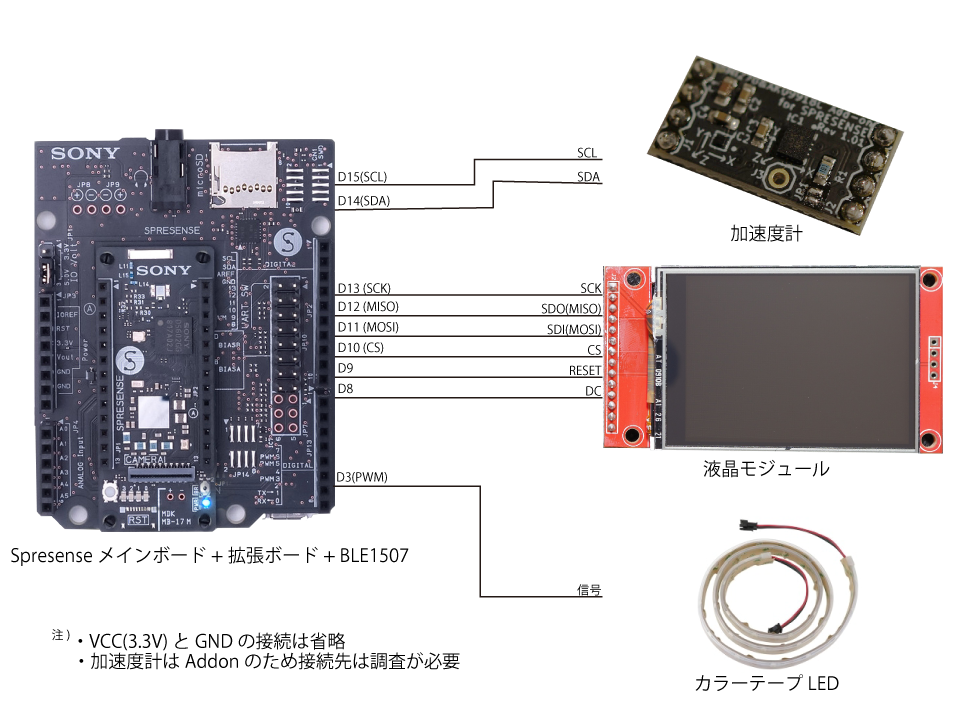

接続図

Spresenseメインボードに BLE1507(BLE serialization firmware) をAddonし、Spresenseメインボードと接続したSpresense拡張ボードに、SPIインタフェースを持つ液晶モジュール、I2Cインタフェースを持つ9軸 加速度計・ジャイロ・コンパスセンサ (BMI270・AK09918) Addon ボード、PWMにより接続するSK6812使用マイコン内蔵フルカラーテープLED 1m 30LED IP67をそれぞれ次のように接続します。

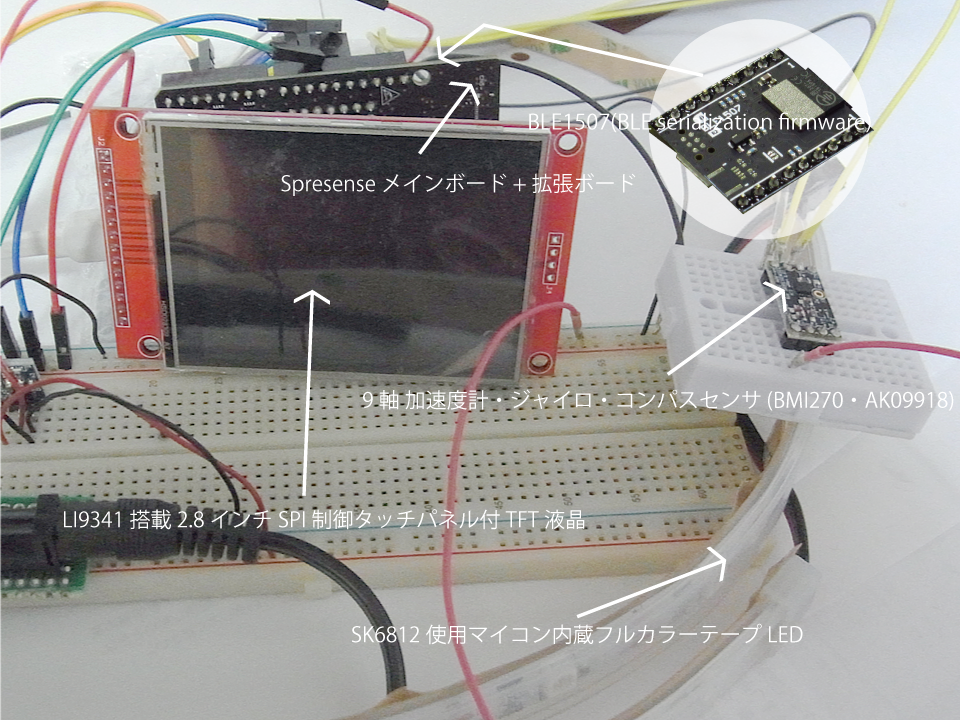

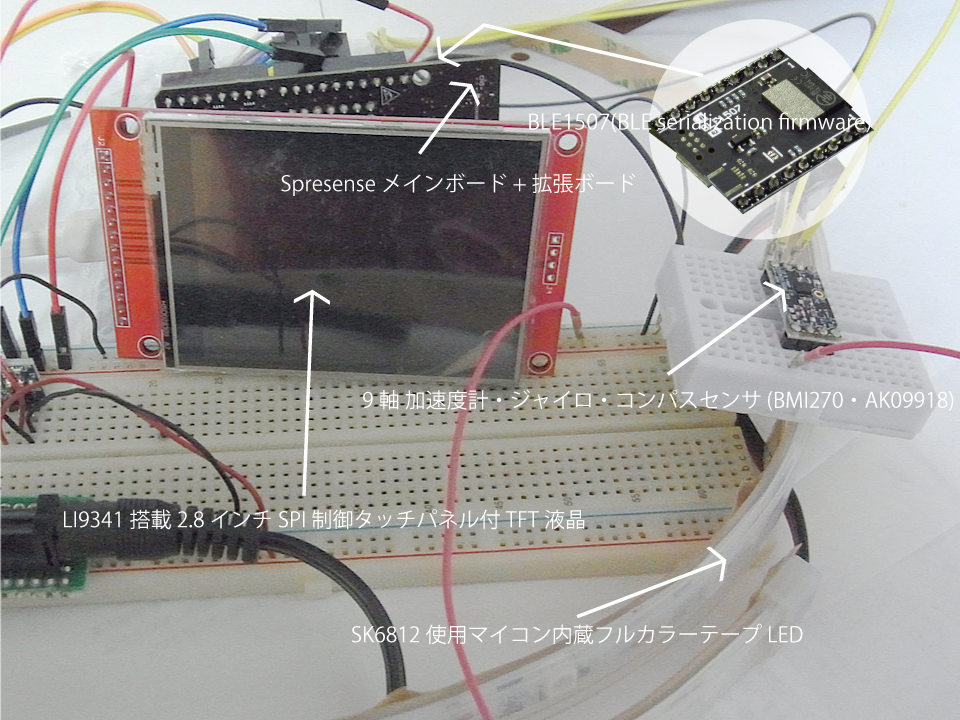

ハードウェア

液晶モジュールの背面からSpresense拡張ボードにSPIインタフェースにより接続します。Spresense拡張ボードに接続された加速度計が動くと、そのデータ値を液晶モジュールに表示し、同時にBLEによりWindowsパソコン上で動作しているブラウザに表示します。また加速度計の動きによって、カラーテープLEDの発行色が変化します。

ソースコード

プログラム「動き検知器」は、Spresenseメインボード上で動作するコード「 Arduinoソースコード」には、Arduino IDEを使用し、Windowsパソコン上のブラウザで動作するコード「 WEBアプリソースコード」には、テキストエディタを使ってコードを開発します。

• Arduinoソースコード
• WEBアプリソースコード

Arduinoソースコード

Arduinoソースコードは、加速度計からのデータを液晶モジュールとカラーテープLEDに引き渡し、加速度計からのデータをBLE転送します。

• 「BLE1507」を用いたBLE転送については「Spresense-Playground」を参照しました。
• 「SK6812使用マイコン内蔵フルカラーテープLED」を用いたカラーテープLEDの表示については「SpresenseNeoPixel」を参照しました。

SpresenseAccel.ino
#include "SpresenseBle.h"
#include "SpresenseSensor.h"

#include "SPI.h"
#include "Adafruit_ILI9341.h"
#include "SpresenseNeoPixel.h"

#define TFT_CS 10
#define TFT_RST 9
#define TFT_DC 8

Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_RST);

extern float accx;
extern float accy;
extern float accz;
char report[80];

// const uint16_t PIN = 6;
const uint16_t PIN = 3;
const uint16_t NUM_PIXELS = 30;
SpresenseNeoPixel<PIN, NUM_PIXELS> neopixel;

void setup() {
  Serial.begin(115200);
  Serial.println("Spresense start!");

  BleInitialize();
  Serial.println("setup00");

  tft.begin();
  tft.setRotation(3);
  tft.fillScreen(ILI9341_BLACK);

  pinMode(LED0, OUTPUT);
  pinMode(LED1, OUTPUT);
  pinMode(LED2, OUTPUT);

  digitalWrite(LED0, HIGH);
  delay(100);
  digitalWrite(LED1, HIGH);
  delay(100);
  digitalWrite(LED2, HIGH);
  delay(1000);

  digitalWrite(LED0, LOW);
  delay(100);
  digitalWrite(LED1, LOW);
  delay(100);
  digitalWrite(LED2, LOW);

  /*
  Serial.println(LED0);
  Serial.println(LED1);
  Serial.println(LED2);
*/
  //float x = 123.56;
  //testText(x);

  //int8_t rslt = BMI270.begin(BMI270_I2C,BMI2_I2C_SEC_ADDR);
  Serial.println("setup05");

  int8_t rslt = BMI270.begin(BMI270_I2C, BMI2_I2C_PRIM_ADDR);
  print_rslt(rslt);
  Serial.println("setup10");

  rslt = configure_sensor();
  print_rslt(rslt);

  neopixel.clear();
  neopixel.framerate(40);  // default framerate is 40[fps]

  delay(1000);
}

void loop(void) {
  int ret = 0;
  static uint8_t ble_notify_data = 0;

  uint8_t data[BLE_MAX_CHAR_SIZE];
  int k = 0;

  struct bmi2_sens_float sensor_data;
  int8_t rslt = BMI270.bmi2_get_sensor_float(&sensor_data);
  print_rslt(rslt);

  Serial.print(micros());  // Comment out this line if using the Serial plotter
  Serial.print(",");       // Comment out this line if using the Serial plotter
  Serial.print(sensor_data.acc.x);
  Serial.print(",");
  Serial.print(sensor_data.acc.y);
  Serial.print(",");
  Serial.print(sensor_data.acc.z);
  Serial.println();

  float accx = sensor_data.acc.x;
  float accy = sensor_data.acc.y;
  float accz = sensor_data.acc.z;


  testText(accx, accy, accz);
  uint leddata = LedConv(accx, accy, accz);
  Serial.print(",");  // Comment out this line if using the Serial plotter
  Serial.print(leddata & 0xff, HEX);
  Serial.print(",");
  Serial.print((leddata & 0xff00) >> 8, HEX);
  Serial.print(",");
  Serial.print((leddata & 0xff0000) >> 16, HEX);
  Serial.println();
  neopixel.set(leddata & 0xff, (leddata & 0xff00) >> 8, (leddata & 0xff0000) >> 16);
  neopixel.show();

  byte* bytes = (byte*)&accx;  // float値の先頭アドレスをbyteポインタにキャストする
  for (int i = 0; i < sizeof(accx); i++) {
    byte b = bytes[i];  // ポインタからbyte値を取得する
    // 取得したbyte値を何らかの方法で格納する
    data[k] = b;
    k++;
  }
  bytes = (byte*)&accy;  // float値の先頭アドレスをbyteポインタにキャストする
  for (int i = 0; i < sizeof(accy); i++) {
    byte b = bytes[i];  // ポインタからbyte値を取得する
    // 取得したbyte値を何らかの方法で格納する
    data[k] = b;
    k++;
  }
  bytes = (byte*)&accz;  // float値の先頭アドレスをbyteポインタにキャストする
  for (int i = 0; i < sizeof(accz); i++) {
    byte b = bytes[i];  // ポインタからbyte値を取得する
    // 取得したbyte値を何らかの方法で格納する
    data[k] = b;
    k++;
  }

  /*
    String s =  "x=19.25 y=31.54 z=78.96";
    s.getBytes(data, BLE_MAX_CHAR_SIZE);
  */
  if (ble_is_notify_enabled) {
    ret = ble_characteristic_notify(ble_conn_handle,
                                    &g_ble_gatt_char,
                                    data,
                                    k);
    if (ret != BT_SUCCESS) {
      printf("%s [BLE] Send data failed. ret = %d\n", __func__, ret);
    }
  }

  sleep(1);
}

uint LedConv(float x, float y, float z) {
  uint work;

  if (x > 0) {
    if (y > 0) {
      if (z > 10) {
        work = 0x000000ff;
      } else {
        work = 0x0000ff00;
      }
    } else {
      if (z > 10) {
        work = 0x000000ff;
      } else {
        work = 0x00ff0000;
      }
    }
  } else {
    if (y > 0) {
      if (z > 10) {
        work = 0x000000ff;
      } else {
        work = 0x00ff0000;
      }
    } else {
      if (z > 10) {
        work = 0x000000ff;
      } else {
        work = 0x0000ff00;
      }
    }
  }

  Serial.print(work, HEX);
  Serial.println();

  return work;
}
void testText(float x, float y, float z) {

  tft.fillRect(80, 10, 210, 80, ILI9341_BLACK);
  tft.setCursor(0, 10);
  tft.setTextColor(ILI9341_WHITE);
  tft.setTextSize(3);
  tft.print("Accx: ");
  tft.println(x);
  tft.print("Accy: ");
  tft.println(y);
  tft.print("Accz: ");
  tft.println(z);
}

SpresenseBle.h
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <bluetooth/ble_gatt.h>

#define BLE_UUID_SDS_SERVICE_IN 0x3802
#define BLE_UUID_SDS_CHAR_IN 0x4a02
#define BONDINFO_FILENAME "/mnt/spif/BONDINFO"


/****************************************************************************
   Private Function Prototypes
 ****************************************************************************/

/* BLE common callbacks */

/* Connection status change */

static void onLeConnectStatusChanged(struct ble_state_s *ble_state,
                                     bool connected, uint8_t reason);

/* Device name change */

static void onConnectedDeviceNameResp(const char *name);

/* Save bonding information */

static void onSaveBondInfo(int num, struct ble_bondinfo_s *bond);

/* Load bonding information */

static int onLoadBondInfo(int num, struct ble_bondinfo_s *bond);

/* Negotiated MTU size */

static void onMtuSize(uint16_t handle, uint16_t sz);

/* Encryption result */

static void onEncryptionResult(uint16_t, bool result);

/* BLE GATT callbacks */

/* Write request */

static void onWrite(struct ble_gatt_char_s *ble_gatt_char);

/* Read request */

static void onRead(struct ble_gatt_char_s *ble_gatt_char);

/* Notify request */

static void onNotify(struct ble_gatt_char_s *ble_gatt_char, bool enable);

/****************************************************************************
   Private Data
 ****************************************************************************/

static struct ble_common_ops_s ble_common_ops = {
  .connect_status_changed = onLeConnectStatusChanged,
  .connected_device_name_resp = onConnectedDeviceNameResp,
  .mtusize = onMtuSize,
  .save_bondinfo = onSaveBondInfo,
  .load_bondinfo = onLoadBondInfo,
  .encryption_result = onEncryptionResult,
};

static struct ble_gatt_peripheral_ops_s ble_gatt_peripheral_ops = {
  .write = onWrite,
  .read = onRead,
  .notify = onNotify
};

static BT_ADDR local_addr = { { 0x19, 0x84, 0x06, 0x14, 0xAB, 0xCD } };

static char local_ble_name[BT_NAME_LEN] = "SPR-PERIPHERAL";

static uint16_t ble_conn_handle;

static struct ble_gatt_service_s *g_ble_gatt_service;

static BLE_ATTR_PERM attr_param = {
  .readPerm = BLE_SEC_MODE1LV2_NO_MITM_ENC,
  .writePerm = BLE_SEC_MODE1LV2_NO_MITM_ENC
};

static uint8_t char_data[BLE_MAX_CHAR_SIZE];

static BLE_CHAR_VALUE char_value = {
  .length = BLE_MAX_CHAR_SIZE
};

static BLE_CHAR_PROP char_property = {
  .read = 1,
  .write = 1,
  .notify = 1
};

static struct ble_gatt_char_s g_ble_gatt_char = {
  .handle = 0,
  .ble_gatt_peripheral_ops = &ble_gatt_peripheral_ops
};

static int g_ble_bonded_device_num;
static struct ble_cccd_s **g_cccd = NULL;

static bool ble_is_notify_enabled = false;


/****************************************************************************
   Private Functions
 ****************************************************************************/

static void onLeConnectStatusChanged(struct ble_state_s *ble_state,
                                     bool connected, uint8_t reason) {
  BT_ADDR addr = ble_state->bt_target_addr;

  /* If receive connected status data, this function will call. */

  printf("[BLE_GATT] Connect status ADDR:%02X:%02X:%02X:%02X:%02X:%02X, status:%s, reason:%d\n",
         addr.address[5], addr.address[4], addr.address[3],
         addr.address[2], addr.address[1], addr.address[0],
         connected ? "Connected" : "Disconnected", reason);

  ble_conn_handle = ble_state->ble_connect_handle;
}

static void onConnectedDeviceNameResp(const char *name) {
  /* If receive connected device name data, this function will call. */

  printf("%s [BLE] Receive connected device name = %s\n", __func__, name);
}

static void onSaveBondInfo(int num, struct ble_bondinfo_s *bond) {
  int i;
  FILE *fp;
  int sz;

  /* In this example, save the parameter `num` and each members of
     the parameter `bond` in order to the file.
  */

  fp = fopen(BONDINFO_FILENAME, "wb");
  if (fp == NULL) {
    printf("Error: could not create file %s\n", BONDINFO_FILENAME);
    return;
  }

  fwrite(&num, 1, sizeof(int), fp);

  for (i = 0; i < num; i++) {
    fwrite(&bond[i], 1, sizeof(struct ble_bondinfo_s), fp);

    /* Because only cccd is pointer member, save it individually. */

    sz = bond[i].cccd_num * sizeof(struct ble_cccd_s);
    fwrite(bond[i].cccd, 1, sz, fp);
  }

  fclose(fp);
}

static int onLoadBondInfo(int num, struct ble_bondinfo_s *bond) {
  int i;
  FILE *fp;
  int stored_num;
  int sz;
  size_t ret;

  fp = fopen(BONDINFO_FILENAME, "rb");
  if (fp == NULL) {
    return 0;
  }

  ret = fread(&stored_num, 1, sizeof(int), fp);
  if (ret != sizeof(int)) {
    printf("Error: could not load due to %s read error.\n",
           BONDINFO_FILENAME);
    fclose(fp);
    return 0;
  }

  g_ble_bonded_device_num = (stored_num < num) ? stored_num : num;
  sz = g_ble_bonded_device_num * sizeof(struct ble_cccd_s *);
  g_cccd = (struct ble_cccd_s **)malloc(sz);
  if (g_cccd == NULL) {
    printf("Error: could not load due to malloc error.\n");
    g_ble_bonded_device_num = 0;
  }

  for (i = 0; i < g_ble_bonded_device_num; i++) {
    ret = fread(&bond[i], 1, sizeof(struct ble_bondinfo_s), fp);
    if (ret != sizeof(struct ble_bondinfo_s)) {
      printf("Error: could not load all data due to %s read error.\n",
             BONDINFO_FILENAME);
      printf("The number of loaded device is %d\n", i);
      g_ble_bonded_device_num = i;
      break;
    }

    if (bond[i].cccd_num > 1) {
      printf("Error: could not load all data due to invalid data.\n");
      printf("cccd_num does not exceed the number of characteristics\n");
      printf("that is set by this application.\n");
      printf("The number of loaded device is %d\n", i);

      g_ble_bonded_device_num = i;
      break;
    }

    /* Because only cccd is pointer member, load it individually. */

    sz = bond[i].cccd_num * sizeof(struct ble_cccd_s);
    g_cccd[i] = (struct ble_cccd_s *)malloc(sz);

    if (g_cccd[i] == NULL) {
      printf("Error: could not load all data due to malloc error.");
      printf("The number of loaded device is %d\n", i);

      g_ble_bonded_device_num = i;
      break;
    }

    bond[i].cccd = g_cccd[i];
    ret = fread(bond[i].cccd, 1, sz, fp);
    if (ret != sz) {
      printf("Error: could not load all data due to %s read error.\n",
             BONDINFO_FILENAME);
      printf("The number of loaded device is %d\n", i);
      g_ble_bonded_device_num = i;
      break;
    }
  }

  fclose(fp);

  return g_ble_bonded_device_num;
}

static void free_cccd(void) {
  int i;

  if (g_cccd) {
    for (i = 0; i < g_ble_bonded_device_num; i++) {
      if (g_cccd[i]) {
        free(g_cccd[i]);
      }
    }

    free(g_cccd);
    g_cccd = NULL;
  }
}

static void onMtuSize(uint16_t handle, uint16_t sz) {
  printf("negotiated MTU size(connection handle = %d) : %d\n", handle, sz);
}

static void onEncryptionResult(uint16_t handle, bool result) {
  printf("Encryption result(connection handle = %d) : %s\n",
         handle, (result) ? "Success" : "Fail");
}

static void show_uuid(BLE_UUID *uuid) {
  int i;

  printf("uuid : ");

  switch (uuid->type) {
    case BLE_UUID_TYPE_UUID128:

      /* UUID format YYYYYYYY-YYYY-YYYY-YYYY-YYYYYYYYYYYY */

      for (i = 0; i < BT_UUID128_LEN; i++) {
        printf("%02x", uuid->value.uuid128.uuid128[BT_UUID128_LEN - i - 1]);
        if ((i == 3) || (i == 5) || (i == 7) || (i == 9)) {
          printf("-");
        }
      }

      printf("\n");

      break;

    case BLE_UUID_TYPE_BASEALIAS_BTSIG:
    case BLE_UUID_TYPE_BASEALIAS_VENDOR:

      /* UUID format XXXX */

      printf("%04x\n", uuid->value.alias.uuidAlias);
      break;

    default:
      printf("Irregular UUID type.\n");
      break;
  }
}

static void onWrite(struct ble_gatt_char_s *ble_gatt_char) {
  int i;

  /* If receive connected device name data, this function will call. */

  printf("%s [BLE] start\n", __func__);
  printf("handle : %d\n", ble_gatt_char->handle);
  show_uuid(&ble_gatt_char->uuid);
  printf("value_len : %d\n", ble_gatt_char->value.length);
  printf("value : ");
  for (i = 0; i < ble_gatt_char->value.length; i++) {
    printf("%02x ", ble_gatt_char->value.data[i]);
  }

  digitalWrite(ble_gatt_char->value.data[0], HIGH);
  delay(150);
  digitalWrite(ble_gatt_char->value.data[0], LOW);

  printf("\n");

  printf("%s [BLE] end\n", __func__);
}

static void onRead(struct ble_gatt_char_s *ble_gatt_char) {
  /* If receive connected device name data, this function will call. */

  printf("%s [BLE] \n", __func__);
}

static void onNotify(struct ble_gatt_char_s *ble_gatt_char, bool enable) {
  /* If receive connected device name data, this function will call. */

  printf("%s [BLE] start \n", __func__);
  printf("handle : %d\n", ble_gatt_char->handle);
  show_uuid(&ble_gatt_char->uuid);

  if (enable) {
    printf("notification enabled\n");
    ble_is_notify_enabled = true;
  } else {
    printf("notification disabled\n");
    ble_is_notify_enabled = false;
  }

  printf("%s [BLE] end \n", __func__);
}

/* Do not used now */
static void ble_peripheral_exit(void) {
  int ret;

  /* Turn OFF BT */

  ret = bt_disable();
  if (ret != BT_SUCCESS) {
    printf("%s [BT] BT disable failed. ret = %d\n", __func__, ret);
  }

  /* Finalize BT */

  ret = bt_finalize();
  if (ret != BT_SUCCESS) {
    printf("%s [BT] BT finalize failed. ret = %d\n", __func__, ret);
  }
}

void BleInitialize() {
  //printf("setup00\n");

  int ret = 0;
  BLE_UUID *s_uuid;
  BLE_UUID *c_uuid;

  /* Initialize BT HAL */

  ret = bt_init();
  if (ret != BT_SUCCESS) {
    printf("%s [BT] Initialization failed. ret = %d\n", __func__, ret);
    goto error;
  }
  //printf("setup01\n");


  /* Register BLE common callbacks */

  ret = ble_register_common_cb(&ble_common_ops);
  if (ret != BT_SUCCESS) {
    printf("%s [BLE] Register common call back failed. ret = %d\n", __func__, ret);
    goto error;
  }

  /* Turn ON BT */
 // printf("setup02\n");

  ret = bt_enable();
  if (ret != BT_SUCCESS) {
    printf("%s [BT] Enabling failed. ret = %d\n", __func__, ret);
    goto error;
  }

  /* Free memory that is allocated in onLoadBond() callback function. */

  free_cccd();

  /* BLE set name */
  //printf("setup03\n");

  ret = ble_set_name(local_ble_name);
  if (ret != BT_SUCCESS) {
    printf("%s [BLE] Set name failed. ret = %d\n", __func__, ret);
    goto error;
  }

  /* BLE set address */
  //printf("setup04\n");

  ret = ble_set_address(&local_addr);
  if (ret != BT_SUCCESS) {
    printf("%s [BLE] Set address failed. ret = %d\n", __func__, ret);
    goto error;
  }

  /* BLE enable */
  //printf("setup05\n");

  ret = ble_enable();
  if (ret != BT_SUCCESS) {
    printf("%s [BLE] Enable failed. ret = %d\n", __func__, ret);
    goto error;
  }

  /* BLE create GATT service instance */
  ret = ble_create_service(&g_ble_gatt_service);
  if (ret != BT_SUCCESS) {
    printf("%s [BLE] Create GATT service failed. ret = %d\n", __func__, ret);
    goto error;
  }
  //printf("setup06\n");

  /* Setup Service */

  /* Get Service UUID pointer */
  s_uuid = &g_ble_gatt_service->uuid;

  /* Setup Service UUID */
  s_uuid->type = BLE_UUID_TYPE_BASEALIAS_BTSIG;
  s_uuid->value.alias.uuidAlias = BLE_UUID_SDS_SERVICE_IN;

  /* Setup Characteristic */
  //printf("setup07\n");

  /* Get Characteristic UUID pointer */
  c_uuid = &g_ble_gatt_char.uuid;

  /* Setup Characteristic UUID */
  //printf("setup08\n");
  c_uuid->type = BLE_UUID_TYPE_BASEALIAS_BTSIG;
  c_uuid->value.alias.uuidAlias = BLE_UUID_SDS_CHAR_IN;

  /* Set data point */
  //printf("setup09\n");
  char_value.data = char_data;

  /* Setup Characteristic BLE_ATTR_PERM */
  memcpy(&char_value.attrPerm, &attr_param, sizeof(BLE_ATTR_PERM));

  /* Setup Characteristic BLE_CHAR_VALUE */
  memcpy(&g_ble_gatt_char.value, &char_value, sizeof(BLE_CHAR_VALUE));

  /* Setup Characteristic BLE_CHAR_PROP */
  memcpy(&g_ble_gatt_char.property, &char_property, sizeof(BLE_CHAR_PROP));

  /* BLE add GATT characteristic into service */
  ret = ble_add_characteristic(g_ble_gatt_service, &g_ble_gatt_char);
  if (ret != BT_SUCCESS) {
    printf("%s [BLE] Add GATT characteristic failed. ret = %d\n", __func__, ret);
    goto error;
  }

  /* BLE register GATT service */

  ret = ble_register_servce(g_ble_gatt_service);
  if (ret != BT_SUCCESS) {
    printf("%s [BLE] Register GATT service failed. ret = %d\n", __func__, ret);
    goto error;
  }

  /* BLE start advertise */

  ret = ble_start_advertise();
  if (ret != BT_SUCCESS) {
    printf("%s [BLE] Start advertise failed. ret = %d\n", __func__, ret);
    goto error;
  }

  return ret;

error:
  return ret;
}

SpresenseNeoPixel.h
#pragma once
#ifndef NEOPIXELSPRESENSE_H
#define NEOPIXELSPRESENSE_H

#include <Arduino.h>
#include "wiring_private.h"

template<uint8_t PIN, uint32_t N_PIXELS>
class SpresenseNeoPixel {
  uint32_t reg;
  uint32_t reg_val;

  uint8_t pixels[N_PIXELS * 3];
  uint32_t interval_us{ 25000 };  // 40fps
  uint32_t prev_us{ 0 };

  float scale{ 1.f };

  const uint32_t n_wait_cycles_t0h_t1l;
  const uint32_t n_wait_cycles_t1h_t0l;
  const uint32_t n_wait_cycles_reset;

public:

  SpresenseNeoPixel()
    : n_wait_cycles_t0h_t1l(1), n_wait_cycles_t1h_t0l(28), n_wait_cycles_reset(1) {
    pinMode(PIN, OUTPUT);
    digitalWrite(PIN, LOW);
    analog_stop(PIN);

    reg = get_gpio_regaddr(pin_convert(PIN));
    reg_val = *(volatile uint32_t*)reg;

    clear();
  }

  inline void show() {
    uint32_t curr_us = micros();
    if (curr_us >= prev_us + interval_us) {
      noInterrupts();
      for (uint32_t pixel = 0; pixel < N_PIXELS; ++pixel) {
        write(LOW);
        wait_cycles(n_wait_cycles_reset);
        for (uint32_t rgb = 0; rgb < 3; ++rgb) {
          uint32_t i = pixel * 3 + rgb;
          (pixels[i] & 0x80) ? one() : zero();
          (pixels[i] & 0x40) ? one() : zero();
          (pixels[i] & 0x20) ? one() : zero();
          (pixels[i] & 0x10) ? one() : zero();
          (pixels[i] & 0x08) ? one() : zero();
          (pixels[i] & 0x04) ? one() : zero();
          (pixels[i] & 0x02) ? one() : zero();
          (pixels[i] & 0x01) ? one() : zero();
        }
      }
      interrupts();
      prev_us = curr_us;
    }
  }

  inline void clear() {
    memset(pixels, 0, N_PIXELS * 3);
  }

  inline void set(uint32_t n, uint8_t r, uint8_t g, uint8_t b) {
    if (n < N_PIXELS) {
      pixels[n * 3 + 0] = (uint8_t)((float)g * scale);
      pixels[n * 3 + 1] = (uint8_t)((float)r * scale);
      pixels[n * 3 + 2] = (uint8_t)((float)b * scale);
    }
  }

  inline void set(uint8_t r, uint8_t g, uint8_t b) {
    for (size_t i = 0; i < N_PIXELS; ++i) set(i, r, g, b);
  }

  inline void set(uint8_t brightness) {
    set(brightness, brightness, brightness);
  }

  inline void brightness(uint8_t b) {
    scale = (float)b / 255.f;
  }

  inline void framerate(float fps) {
    interval_us = (uint32_t)(1000000.f / fps);
  }

  inline void interval(uint32_t us) {
    interval_us = us;
  }

private:

  inline void zero() {
    write(HIGH);
    wait_cycles(n_wait_cycles_t0h_t1l);
    write(LOW);
    wait_cycles(n_wait_cycles_t1h_t0l);
  }

  inline void one() {
    write(HIGH);
    wait_cycles(n_wait_cycles_t1h_t0l);
    write(LOW);
    wait_cycles(n_wait_cycles_t0h_t1l);
  }

  inline void write(uint8_t value) {
    bitWrite(reg_val, GPIO_OUTPUT_SHIFT, value);
    *(volatile uint32_t*)reg = reg_val;
  }

  inline void wait_cycles(uint32_t n)  // 4 clocks per cycle
  {
    asm volatile(
      "0:"
      "SUBS %[count], 1;"
      "BNE 0b;"
      : [count] "+r"(n));
  }
};

#endif  // NEOPIXELSPRESENSE_H

SpresenseSensor.h
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include "BMI270_Arduino.h"

BMI270Class BMI270;

/* Other functions */
int8_t configure_sensor(struct bmi2_dev *dev);
void panic_led_trap(void);
void print_rslt(int8_t rslt);

/* Sensor configuration */
int8_t configure_sensor()
{
  int8_t rslt;
  uint8_t sens_list[1] = { BMI2_ACCEL };

  struct bmi2_sens_config config;

  /* Configure the type of feature. */
  config.type = BMI2_ACCEL;

  /* NOTE: The user can change the following configuration parameters according to their requirement. */
  /* Set Output Data Rate */
  config.cfg.acc.odr = BMI2_ACC_ODR_200HZ;

  /* Gravity range of the sensor (+/- 2G, 4G, 8G, 16G). */
  config.cfg.acc.range = BMI2_ACC_RANGE_2G;

  /* The bandwidth parameter is used to configure the number of sensor samples that are averaged
   * if it is set to 2, then 2^(bandwidth parameter) samples
   * are averaged, resulting in 4 averaged samples.
   * Note1 : For more information, refer the datasheet.
   * Note2 : A higher number of averaged samples will result in a lower noise level of the signal, but
   * this has an adverse effect on the power consumed.
   */
  config.cfg.acc.bwp = BMI2_ACC_NORMAL_AVG4;

  /* Enable the filter performance mode where averaging of samples
   * will be done based on above set bandwidth and ODR.
   * There are two modes
   *  0 -> Ultra low power mode
   *  1 -> High performance mode(Default)
   * For more info refer datasheet.
   */
  config.cfg.acc.filter_perf = BMI2_PERF_OPT_MODE;

  /* Set the accel configurations. */
  rslt = BMI270.set_sensor_config(&config, 1);
  if (rslt != BMI2_OK) return rslt;

  rslt = BMI270.sensor_enable(sens_list, 1);
  if (rslt != BMI2_OK) return rslt;

  return rslt;
}

void panic_led_trap(void)
{
  while (1)
  {
    digitalWrite(LED_BUILTIN, LOW);
    delay(100);
    digitalWrite(LED_BUILTIN, HIGH);
    delay(100);
  }
}

void print_rslt(int8_t rslt)
{
  switch (rslt)
  {
    case BMI2_OK: return; /* Do nothing */ break;
    case BMI2_E_NULL_PTR:
      Serial.println("Error [" + String(rslt) + "] : Null pointer");
      panic_led_trap();
      break;
    case BMI2_E_COM_FAIL:
      Serial.println("Error [" + String(rslt) + "] : Communication failure");
      panic_led_trap();
      break;
    case BMI2_E_DEV_NOT_FOUND:
      Serial.println("Error [" + String(rslt) + "] : Device not found");
      panic_led_trap();
      break;
    case BMI2_E_OUT_OF_RANGE:
      Serial.println("Error [" + String(rslt) + "] : Out of range");
      panic_led_trap();
      break;
    case BMI2_E_ACC_INVALID_CFG:
      Serial.println("Error [" + String(rslt) + "] : Invalid accel configuration");
      panic_led_trap();
      break;
    case BMI2_E_GYRO_INVALID_CFG:
      Serial.println("Error [" + String(rslt) + "] : Invalid gyro configuration");
      panic_led_trap();
      break;
    case BMI2_E_ACC_GYR_INVALID_CFG:
      Serial.println("Error [" + String(rslt) + "] : Invalid accel/gyro configuration");
      panic_led_trap();
      break;
    case BMI2_E_INVALID_SENSOR:
      Serial.println("Error [" + String(rslt) + "] : Invalid sensor");
      panic_led_trap();
      break;
    case BMI2_E_CONFIG_LOAD:
      Serial.println("Error [" + String(rslt) + "] : Configuration loading error");
      panic_led_trap();
      break;
    case BMI2_E_INVALID_PAGE:
      Serial.println("Error [" + String(rslt) + "] : Invalid page ");
      panic_led_trap();
      break;
    case BMI2_E_INVALID_FEAT_BIT:
      Serial.println("Error [" + String(rslt) + "] : Invalid feature bit");
      panic_led_trap();
      break;
    case BMI2_E_INVALID_INT_PIN:
      Serial.println("Error [" + String(rslt) + "] : Invalid interrupt pin");
      panic_led_trap();
      break;
    case BMI2_E_SET_APS_FAIL:
      Serial.println("Error [" + String(rslt) + "] : Setting advanced power mode failed");
      panic_led_trap();
      break;
    case BMI2_E_AUX_INVALID_CFG:
      Serial.println("Error [" + String(rslt) + "] : Invalid auxilliary configuration");
      panic_led_trap();
      break;
    case BMI2_E_AUX_BUSY:
      Serial.println("Error [" + String(rslt) + "] : Auxilliary busy");
      panic_led_trap();
      break;
    case BMI2_E_SELF_TEST_FAIL:
      Serial.println("Error [" + String(rslt) + "] : Self test failed");
      panic_led_trap();
      break;
    case BMI2_E_REMAP_ERROR:
      Serial.println("Error [" + String(rslt) + "] : Remapping error");
      panic_led_trap();
      break;
    case BMI2_E_GYR_USER_GAIN_UPD_FAIL:
      Serial.println("Error [" + String(rslt) + "] : Gyro user gain update failed");
      panic_led_trap();
      break;
    case BMI2_E_SELF_TEST_NOT_DONE:
      Serial.println("Error [" + String(rslt) + "] : Self test not done");
      panic_led_trap();
      break;
    case BMI2_E_INVALID_INPUT:
      Serial.println("Error [" + String(rslt) + "] : Invalid input");
      panic_led_trap();
      break;
    case BMI2_E_INVALID_STATUS:
      Serial.println("Error [" + String(rslt) + "] : Invalid status");
      panic_led_trap();
      break;
    case BMI2_E_CRT_ERROR:
      Serial.println("Error [" + String(rslt) + "] : CRT error");
      panic_led_trap();
      break;
    case BMI2_E_ST_ALREADY_RUNNING:
      Serial.println("Error [" + String(rslt) + "] : Self test already running");
      panic_led_trap();
      break;
    case BMI2_E_CRT_READY_FOR_DL_FAIL_ABORT:
      Serial.println("Error [" + String(rslt) + "] : CRT ready for DL fail abort");
      panic_led_trap();
      break;
    case BMI2_E_DL_ERROR:
      Serial.println("Error [" + String(rslt) + "] : DL error");
      panic_led_trap();
      break;
    case BMI2_E_PRECON_ERROR:
      Serial.println("Error [" + String(rslt) + "] : PRECON error");
      panic_led_trap();
      break;
    case BMI2_E_ABORT_ERROR:
      Serial.println("Error [" + String(rslt) + "] : Abort error");
      panic_led_trap();
      break;
    case BMI2_E_GYRO_SELF_TEST_ERROR:
      Serial.println("Error [" + String(rslt) + "] : Gyro self test error");
      panic_led_trap();
      break;
    case BMI2_E_GYRO_SELF_TEST_TIMEOUT:
      Serial.println("Error [" + String(rslt) + "] : Gyro self test timeout");
      panic_led_trap();
      break;
    case BMI2_E_WRITE_CYCLE_ONGOING:
      Serial.println("Error [" + String(rslt) + "] : Write cycle ongoing");
      panic_led_trap();
      break;
    case BMI2_E_WRITE_CYCLE_TIMEOUT:
      Serial.println("Error [" + String(rslt) + "] : Write cycle timeout");
      panic_led_trap();
      break;
    case BMI2_E_ST_NOT_RUNING:
      Serial.println("Error [" + String(rslt) + "] : Self test not running");
      panic_led_trap();
      break;
    case BMI2_E_DATA_RDY_INT_FAILED:
      Serial.println("Error [" + String(rslt) + "] : Data ready interrupt failed");
      panic_led_trap();
      break;
    case BMI2_E_INVALID_FOC_POSITION:
      Serial.println("Error [" + String(rslt) + "] : Invalid FOC position");
      panic_led_trap();
      break;
    default:
      Serial.println("Error [" + String(rslt) + "] : Unknown error code");
      panic_led_trap();
      break;
  }
}

WEBアプリソースコード

WEBアプリソースコードは、BLE転送による加速度計からのデータを、Windowsパソコンで動作しているブラウザで受け取って表示します。BLE転送による表示には、「Web Bluetooth API 」を使用します。

• WEBアプリを起動すると次の画面が表示されます。

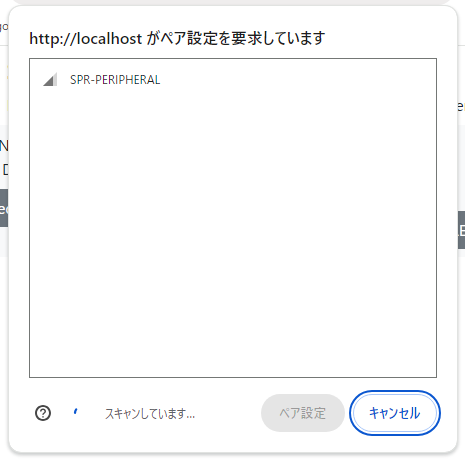

• 「Connect」ボタンを押すと次のダイアログが表示され、対応する「Spresense」を選択します。

index.html.h
<html lang="ja">

<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">

    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/css/bootstrap.min.css" rel="stylesheet"
        integrity="sha384-1BmE4kWBq78iYhFldvKuhfTAU6auU8tT94WrHftjDbrCEXSU1oBoqyl2QvZ6jIW3" crossorigin="anonymous">
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap-icons@1.8.0/font/bootstrap-icons.css">

    <title>Spresense BLE Interface</title>
</head>

<body>
    <div class="container">

        <div class="row justify-content-center">
            <div class="col-10 pt-2 mb-2">
                <h3>Spresense BLE Interface</h3>
                <div id="error">Error : </div>
            </div>
        </div>

        <div class="row justify-content-center bg-light">
            <div class="col-6  pt-2">
                <div id="device_name">Device Name : </div>
                <div id="connect_status">Status : Disconnect</div>

                <div class="mt-2">
                    <button type="button" class="btn btn-secondary scanBtn">Connect</button>
                    <button type="button" class="btn btn-secondary resetBtn">Disconnect</button>
                </div>
            </div>

            <div class="col-6 pt-2">
                <div id="read_data">加速度 :</div>
                <div class="col-12 pt-2">
                    <button type="button" class="btn btn-secondary notifyBtn">Notify Start</button>
                </div>

                <div class="col-12 pt-2 mb-2">
                    <div>
                        <button type="button" class="btn btn-secondary commandBtn1">LED0</button>
                        <button type="button" class="btn btn-secondary commandBtn2">LED1</button>
                        <button type="button" class="btn btn-secondary commandBtn3">LED2</button>
                    </div>
                </div>
            </div>

        </div>
        <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/js/bootstrap.bundle.min.js"
            integrity="sha384-ka7Sk0Gln4gmtz2MlQnikT1wXgYsOg+OMhuP+IlRH9sENBO0LRn5q+8nbTov4+1p"
            crossorigin="anonymous"></script>
        <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>

        <script type="module" src="./Spresense.js"></script>

</body>

</html>

Spresense.js
import spresense_ble from './Spresense_ble.js';

let Spresense_ble = new spresense_ble();

/*/////////////////////////////////
console.log("float test05");

function toFloat(v) {
    var a = new ArrayBuffer(4),
        b = new Uint32Array(a),
        f = new Float32Array(a);
    b[0] = v;
    return f[0];
}

console.log(toFloat(0x419A0000)); // -> 19.25
console.log(toFloat(0x41FC51EC)); // -> 31.54
console.log(toFloat(0x429DEB85)); // -> 78.96

////////////////////////////////*/

//Connectボタンの処理
const scanBtn = document.querySelector('.scanBtn');
scanBtn.addEventListener('click', function (clickEvent) {
    //this.EGRequest = 0; //暫定的に記載
    Spresense_ble.Blecan();
})

//コマンド書き込み
const onBtn1 = document.querySelector('.commandBtn1');
onBtn1.addEventListener('click', function (clickEvent) {
    //セットしたコマンドを送信
    Spresense_ble.Write(Spresense_ble.Custom3_Characteristic_UUID, Spresense_ble.Command1);
})

const onBtn2 = document.querySelector('.commandBtn2');
onBtn2.addEventListener('click', function (clickEvent) {
    //セットしたコマンドを送信
    Spresense_ble.Write(Spresense_ble.Custom3_Characteristic_UUID, Spresense_ble.Command2);
})

const onBtn3 = document.querySelector('.commandBtn3');
onBtn3.addEventListener('click', function (clickEvent) {
    //セットしたコマンドを送信
    Spresense_ble.Write(Spresense_ble.Custom3_Characteristic_UUID, Spresense_ble.Command3);
})
//データ通知
const notifyBtn = document.querySelector('.notifyBtn');
notifyBtn.addEventListener('click', function (clickEvent) {
    Spresense_ble.StartNotify(Spresense_ble.Custom1_Characteristic_UUID);
})

//Disconnectボタンの処理
const resetBtn = document.querySelector('.resetBtn');
resetBtn.addEventListener('click', function (clickEvent) {
    Spresense_ble.Reset();
})

//HTMLに値を表示

Spresense_ble.onScan = function (deviceName) {
    document.getElementById('device_name').innerHTML = 'Device Name : ' + deviceName;
    document.getElementById('error').innerHTML = "Error : ";
}
Spresense_ble.onConnectGATT = function () {
    document.getElementById('connect_status').innerHTML = 'Status : Connected';
    document.getElementById('error').innerHTML = "Error : ";
};
Spresense_ble.onWrite = function () {
    document.getElementById('connect_status').innerHTML = 'Status : Sended command'
    document.getElementById('error').innerHTML = "Error : ";
}

Spresense_ble.onData = function (data) {
    document.getElementById('read_data').innerHTML = '加速度 : ' + data;
    document.getElementById('error').innerHTML = "Error : ";
}
Spresense_ble.onError = function (error) {
    document.getElementById('error').innerHTML = 'Error : ' + error;
}

Spresense_ble.js
export default class {
    //constructor
    constructor() {
        this.device = null;
        this.server = null;
        this.service = null;
        this.Commanduuid = null;
        this.Readuuid = null;
        this.Notifyuuid = null;

        this.Service1_UUID = "00003802-0000-1000-8000-00805f9b34fb";
        this.Custom1_Characteristic_UUID = "00004a02-0000-1000-8000-00805f9b34fb";
        this.Custom3_Characteristic_UUID = "00004a02-0000-1000-8000-00805f9b34fb";


        // モーション（動き）検知 100ms間隔（モーション系センサのみ）
        this.Command1 = [[64]];
        this.Command2 = [[65]];
        this.Command3 = [[66]];

        this.alpsoptions = {
            acceptAllDevices: true,
            optionalServices: [this.Service1_UUID]
        };

    }
    async Blecan() {
        try {
            console.log('Requesting Bluetooth Device...');
            this.device = await navigator.bluetooth.requestDevice(this.alpsoptions);
            this.onScan(this.device.name);
            this.onConnectGATT();

            this.server = await this.device.gatt.connect();
            console.log('Getting GAP Service...');
            this.service = await this.server.getPrimaryService(this.Service1_UUID);
            console.log('Got Service');
        } catch (error) {
            this.onError(error);
            console.log('Argh! ' + error);
        }
    }

    async Write(uuid, moveCommand) {
        try {
            console.log('Execute : Write');
            this.Commanduuid = await this.service.getCharacteristic(uuid);
            //this.Readuuid = await this.service.getCharacteristic(this.Custom1_Characteristic_UUID);

            for (let i = 0; i < moveCommand.length; i++) {
                //console.log(moveCommand[i]);
                let uint8array = new Uint8Array(moveCommand[i].length);
                for (let Offset = 0; Offset < moveCommand[i].length; Offset++) {
                    uint8array[Offset] = moveCommand[i][Offset];
                }
                //console.log(uint8array);
                await this.Commanduuid.writeValue(uint8array, true);
            }
            this.onWrite();
        }
        catch (error) {
            this.onError(error);
            console.log('Argh! ' + error);
        }
    }
    toFloat(v) {
        var a = new ArrayBuffer(4),
            b = new Uint32Array(a),
            f = new Float32Array(a);
        b[0] = v;
        return f[0];
    }

    DataChanged(event) {
        try {
            console.log('Execute8 : DataChanged');

            let value = event.target.value;
            const data = new ArrayBuffer(4);
            let accx = 0;
            let accy = 0;
            let accz = 0;
            for (let k = 0; k < 4; k++) {
                accx += value.getUint8(k, false) << (8 * k);
            }
            for (let k = 0; k < 4; k++) {
                accy += value.getUint8(k + 4, false) << (8 * k);
            }
            for (let k = 0; k < 4; k++) {
                accz += value.getUint8(k + 8, false) << (8 * k);
            }
            /*
              console.log(accx.toString(16));
                console.log(this.toFloat(accx)); // -> 19.25
                console.log(this.toFloat(0x419A0000)); // -> 19.25
                console.log(this.toFloat(0x41FC51EC)); // -> 31.54
                console.log(this.toFloat(0x429DEB85)); // -> 78.96
                */
            this.onData("x=" + this.toFloat(accx).toFixed(2) +
                " y=" + this.toFloat(accy).toFixed(2) +
                " z=" + this.toFloat(accz).toFixed(2)
            );
        }
        catch (error) {
            this.onError(error);
            console.log('Argh! ' + error);
        }
    }

    async StartNotify(uuid) {
        try {
            console.log('Execute : StartNotify');
            this.Notifyuuid = await this.service.getCharacteristic(uuid);
            this.Notifyuuid.addEventListener('characteristicvaluechanged', this.DataChanged.bind(this));
            await this.Notifyuuid.startNotifications();
        }
        catch (error) {
            this.onError(error);
            console.log('Argh! ' + error);
        }
    }

    async StopNotify() {
        try {
            console.log('Execute : StopNotify');
            await this.Notifyuuid.stopNotifications();
        }
        catch (error) {
            this.onError(error);
            console.log('Argh! ' + error);
        }
    }

    async Disconnect() {
        if (!this.device) {
            var error = "No Bluetooth Device";
            console.log('Error : ' + error);
            this.onError(error);
            return;
        }

        if (this.device.gatt.connected) {
            console.log('Execute : disconnect');

            this.isNotify = false;
            this.device.gatt.disconnect();
        } else {
            var error = "Bluetooth Device is already disconnected";
            console.log('Error : ' + error);
            this.onError(error);
            return;
        }
    }

    Clear() {
        console.log('Excute : Clear Device and Characteristic');
        this.device = null;
    }

    //reset
    Reset() {
        console.log('Excute : reset');
        this.Disconnect(); //GNDisconnect() is not Promise Object
        this.Clear();
    }
}
